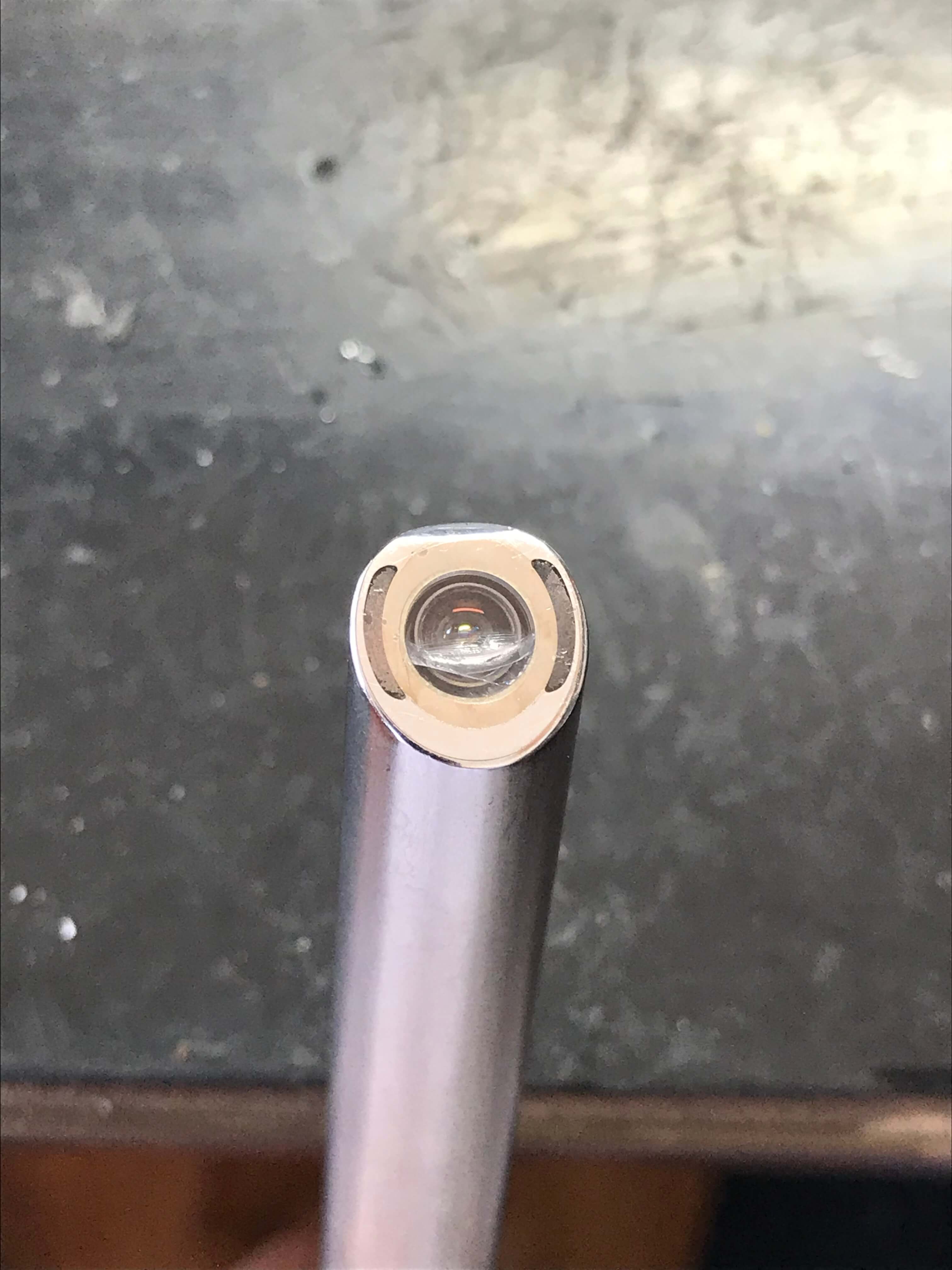

内窥镜摄像机工作原理为：光源发出的光通过传光束(光纤)，经内窥镜主体，传递到人体内部，照亮人体内腔组织需要检查的部分，物镜将待检查的部分成像在面阵CCD上，由CCD驱动电路控制CCD采集图像，输出标准视频信号。调节机构用于调节内窥镜前端的观察角度，可上下调节、左右调节和旋转调节。

The working principle of the endoscope camera is: the light emitted by the light source is transmitted to the interior of the human body through the transmission beam (optical fiber) through the main body of the endoscope to illuminate the part of the inner cavity tissue of the human body that needs to be inspected. The objective lens images the part to be inspected on the area CCD, and the CCD is controlled by the CCD driving circuit to collect the image and output the standard video signal. The adjusting mechanism is used to adjust the observation angle of the front end of the endoscope, which can be adjusted up and down, left and right and rotated.

内窥镜摄像机由控的制器和应用部分组成。应用部分包括：内窥镜接口适配器和摄像头。与内窥镜配合使用，用于微创外科术。内窥镜摄像机可将图像从内窥镜传输到医学监的视器上。

The endoscope camera is composed of controller and application part. The application part includes: endoscope interface adapter and camera. It is used in combination with endoscope for minimally invasive surgery. The endoscope camera can transmit images from the endoscope to the medical monitor.

内窥镜摄像机具有以下特点：拥有非常丰富的数字，模拟接口，屏幕观看几乎没有死角，拍摄影像，颜色不是真，感光系统可以保持无论何种环境的变化，长久使用拍摄时屏幕亮度都会保持不变，显示色彩更丰富，更真实，保持原色不变，同时摄像机还具有防尘防水设计，方便表面清洁以及机器的运转。

The endoscope camera has the following characteristics: it has a very rich digital and analog interface, there is almost no dead angle for screen viewing, the color of the captured image is not true, the photosensitive system can maintain the brightness of the screen no matter what the change of the environment, the screen brightness will remain unchanged for long-term use, the display color is richer and more realistic, and the primary color remains unchanged. At the same time, the camera also has dust-proof and waterproof design, Facilitate surface cleaning and machine operation.

医用内窥镜摄像机的组成：主要由三大部分组成：物镜(内窥镜:硬管镜和软管镜);电耦合器CCD3.医用监的视器;冷光源及控制主机，另外可以加配电脑及采集卡,实现图像采集及存储功能物镜，指的就是内窥镜，这里主要拿硬管镜和软管镜来讲述。医用内窥镜摄像系统哪里生产厂家好?还有哪些疑问可直接与利昂客服联系。

Composition of medical endoscope camera: it is mainly composed of three parts: objective lens (endoscope: hard tube mirror and hose mirror); Electric coupler ccd3 Medical monitor; Cold light source and control host. In addition, it can be equipped with computer and acquisition card to realize image acquisition and storage. Objective lens refers to endoscope. Here it is mainly described with hard tube mirror and hose mirror. Where is the manufacturer of medical endoscope camera system? If you have any questions, please contact Leon customer service directly.

内窥镜摄像机成像显示系统特别提到在连接硬管镜或软管镜时需要使用的光学接口，有标准C型防水变焦光学接口、标准C型防水硬直通光学几口等等。在选择的内窥镜摄像机设备上，对于系统参数输入接口、输出接口、分辨率、音频、电源供应、安装方式、规格尺寸等等，在订购时候都要看下，以及安装上要进行调试。

The imaging display system of endoscope camera specially refers to the optical interface that needs to be used when connecting hard tube mirror or hose mirror, including standard C-type waterproof zoom optical interface, standard C-type waterproof hard through optical port, etc. On the selected endoscope camera equipment, the system parameter input interface, output interface, resolution, audio, power supply, installation mode, specification and size, etc. shall be checked when ordering, and the installation shall be debugged.

此外内窥镜设备维修人员提醒您在选择内窥镜摄像系统生产厂家上，建议多看几个厂商，如果您还有问题没解决好的话那就来关注我们的网站www.jiangrenyiliao.cn吧。

In addition, the maintenance personnel of endoscope equipment remind you that when choosing the manufacturer of endoscope camera system, it is recommended to see more manufacturers. If you still have problems to be solved, please pay attention to our website.
